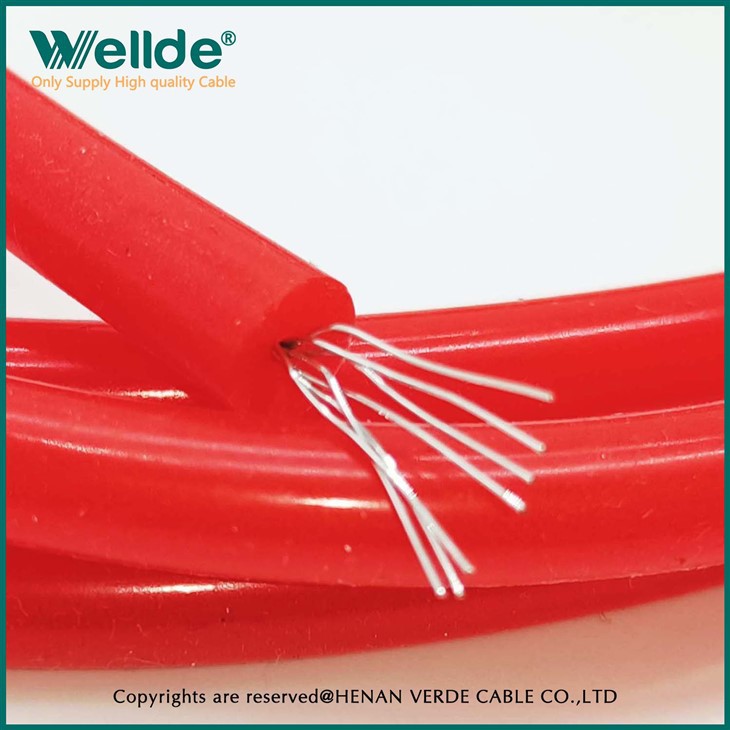

Cable calefactor de silicona y cobre estañado

Director

Aislamiento

Espesor mm

Diámetro externo

milímetros

Eléctrico

Propiedades

En corte

Área mm²

Director

Construcción

NO.xΦmm

Diámetro

milímetros

500V

1000V

500V

1000V

Máx. Conductor

Resistencia CC 20 grados

Ω/km

0.5

28/0.15

0.90

1.0

1.2

2.90

3.30

40.1

0.75

24/0.20

1.15

1.0

1.2

3.20

3.60

26.7

1

32/0.20

1.30

1.0

1.2

3.30

3.70

20

1.5

48/0.20

1.60

1.0

1.2

3.60

4.0

13.7

2

40/0.25

1.85

1.0

1.2

3.90

4.30

9.9

2.5

49/0.25

2.00

1.0

1.2

4.00

4.40

8.21

4

56/0.30

2.80

1.2

1.4

5.20

5.60

5.09

6

84/0.30

3.60

1.2

1.5

6.00

6.60

3.39

10

84/0.40

4.60

1.4

1.6

7.40

7.80

1.95

16

126/0.40

5.80

1.4

1.6

8.60

9.0

1.24

25

196/0.40

7.60

1.6

1.8

10.80

11.2

0.795

35

494/0.30

8.80

1.8

2.0

12.40

12.80

0.565

50

396/0.40

10.6

2.0

2.2

14.60

15.0

0.393

70

551/0.0

12.8

2.0

2.2

16.80

17.20

0.277

95

760/0.40

14.8

2.2

2.5

19.20

19.80

0.210

120

608/0.50

16.5

2.2

2.5

21.00

21.50

0.164

150

185

760/0.50

18.2

2.4

2.6

23.00

23.40

0.132

925/0.50

20.0

2.4

2.6

24.80

25.20

0.108

240

1221/0.50

23.0

2.6

2.8

28.20

28.60

0.0817
